Agile PLM 9.2.2.1 – Part II – Database Node Installation

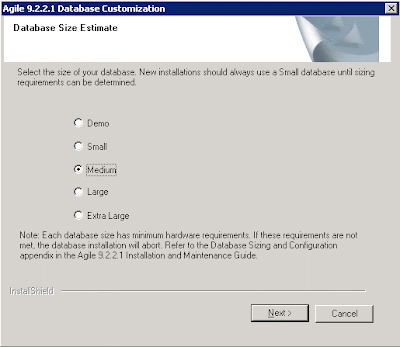

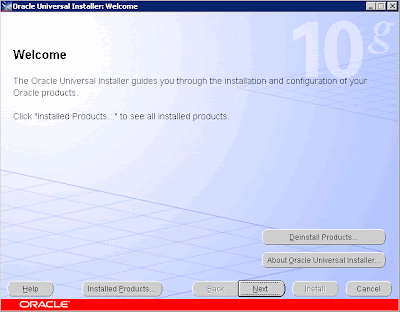

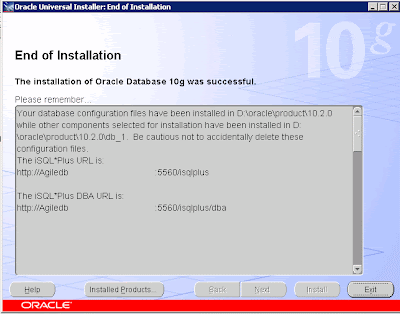

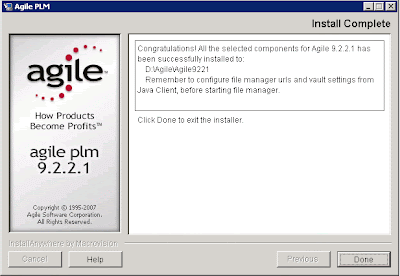

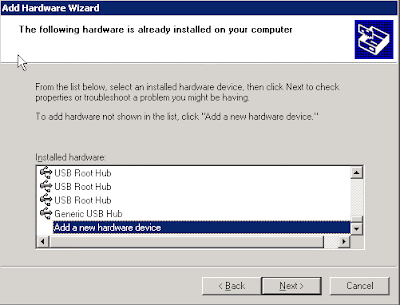

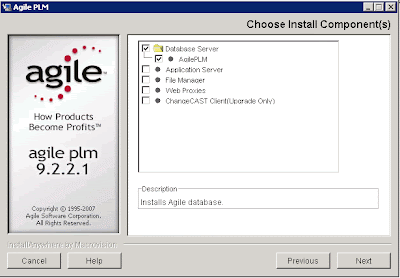

Following my last post about Agile PLM 9.2.2.1 – Part I, in this post I’ll show, step by step, how to install Agile PLM 9.2.2.1 system. The latest version of Agile PLM is 9.2.2.2, but it's too much new to install it for production.. I installed the Agile PLM 9.2.2.1 on 2 nodes configuration: 1) Agiledb – Oracle Database server Node C:\ drive – OS only D:\ drive – Database 10g software and Datafiles 2) Agileapp – Agile Application + IIS + Oracle AS + Agile File Manager Node C:\ drive – OS only D:\ drive – Agile 9.2.2.1 applications + Oracle AS E:\ drive – File Vault (managed by the File Manager) ** Both servers installed with Windows 2003 Server OS. This post will describe all phases of database node installation, and next post I’ll describe the application node installation. The Agile Database node installation composed from the following steps: - Complete all database installation pre requisites - Oracle Database 10.2.0.1 installation - Oracle Datbase companion installation - Agile Database creation - Listener configuration Database Node Installation - Pre Requisites 1) If server is DHCP configured you should setup a loopback (10g installation requirements) a. Control panel -> Add hardware b. Choose: Yes, I have already connected the hardware c. Choose: Add a new hardware device (the last item on list) d. Choose: Install the hardware that I manually select from a list e. Choose: Network adapters f. Choose at the left side: Microsoft at right side choose: Microsoft loopback adapter g. Edit the server host file at c:\windows\system32\driver\etc\hosts Add the following line: 10.10.10.10 agiledb.domain agiledb h. Navigate to network connections: Start -> settings -> Network Connections i. Right Click on Local Area Connection – Microsoft Loopback Adapter -> properties ii. Select TCP/IP -> properties iii. Edit the ip address to 10.10.10.10 iv. Edit the subnet mask to 255.255.255.0 2) Restart the server Oracle Database 10.2.0.1 installation 1) Run database installer – setup.exe (from database directory) 2) Select Basic installation – Standard Edition a. Oracle Home Location: d:\oracle\product\10.2.0\db_1 b. Uncheck the Create Starter Database 3) Review prerequisite checks 4) Click on Install… 5) Exit Database Companion Installation 1) Run the installer – setup.exe (from companion directory) 2) Select Oracle Database 10g Products 10.2.0.1.0 3) Specify Home details: a. Name: OraDb10g_home1 b. Path: D:\oracle\product\10.2.0\db_1 3) Review prerequisite checks 4) Install… 5) Exit Agile Database Creation 1) Copy the “Platform” directory from Agile Disk2 directory to Agile Disk1 directory to the setup.exe level 2) Run [Disk1]:\windows\setup.exe 3) Accept license agreement 4) Enter the license key and user name. 5) Select : Database Server only 6) Enter the location to install the selected Agile 9.2.2.1 components: D:\agile\agile9221 7) Select Oracle 10g Database Server 8) Install 9) Destination folder for database customization files: d:\Agile9Tmp 10) Select “Medium” Database size For more information regarding each possibility - small, medium, large... - read the Capacity Planning Guide 11) Select the previous installed oracle home 12) Oracle SID: agile9 13) Enter passwords for Sys and System and user name and password for Agile schema. 14) Click some next’s… 15) Agile installation will create the database 16) Done Configure Database Listener 1) Navigate to: Start Menu -> Programs -> Oracle - OraDb10g_home1 -> Configuration and Migration Tools -> Net Manager 2) Create new Listener, Name: Listener 3) Select Database Services from the drop down list a. Click on Add database b. Global Database Name: Agile9 c. Oracle Home Directory: d:\oracle\product\10.2.0\db_1 d. SID: agile9 4) File -> Save Network Configuration 5) Restart the Listener a. Lsnrctl stop b. Lsnrctl start That’s all for the Agile Database node. Next post I’ll show the Agile 9.2.2.1 Application node installation. For more information: Capacity Planning Guide OracleAgile Database Installation Guide You are welcome to leave a comment. Aviad

Agile PLM 9.2.2.1 - Part I

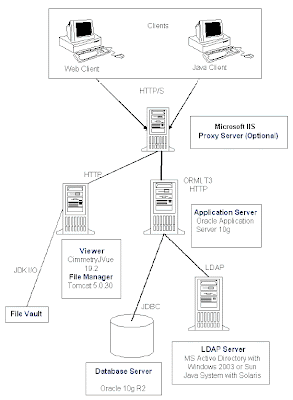

In May this year, Oracle has acquired Agile, a leading provider of Product Lifecycle Management (PLM) software solutions. In this post I will explain about the various components of Agile PLM system, and the following posts will be dedicated to Agile PLM installation. The components of Agile PLM application are: 1) Agile Database 2) Agile Application Server 3) Agile File Manager 4) Agile Web Proxies These components should be installed in the above order. Agile Database Used to hold all Agile data. It is recommended to install the database and application server on separated machines. Agile Application Server The Agile Application Server can be run on Oracle Application Server 10g or BEA WebLogic Server. The Application Server is the main component of the Agile system, all services and business logic reside on it. The Agile application deployed on the Application Server. All users (Java/Web clients) connect to the Application Server in 2 possible ways: - Directly - Indirectly, via Wev proxy Server. Agile File Manager The File Manager manages all Agile files in the file system (File Vault). The File Manager runs on Tomcat. Agile Web Proxies Server The Agile web client allows connection to both internal and external users. Agile web client uses Microsoft IIS (Internet Information Services) or Apache web server. The Agile web client connects to an Agile Application Server the same way like other Agile Application Server clients. Next post I will show, step by step, how to install Agile PLM 9.2.21 on two nodes configuration. Aviad
